무인포스

아임유(P2C) 무인포스

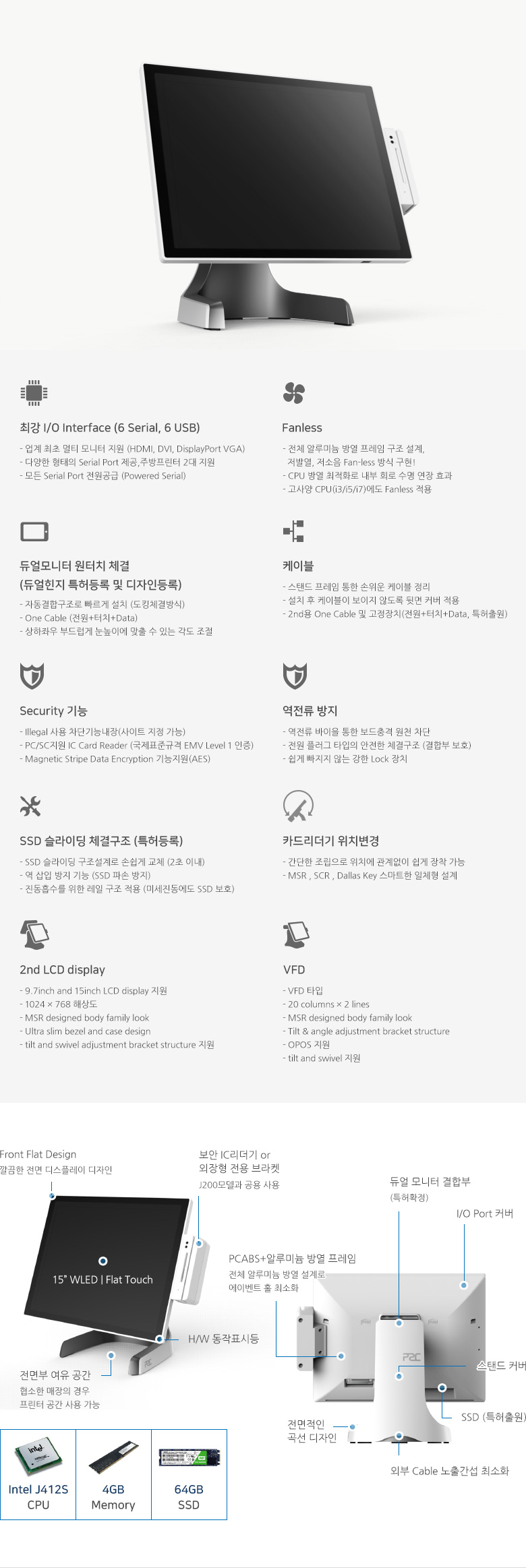

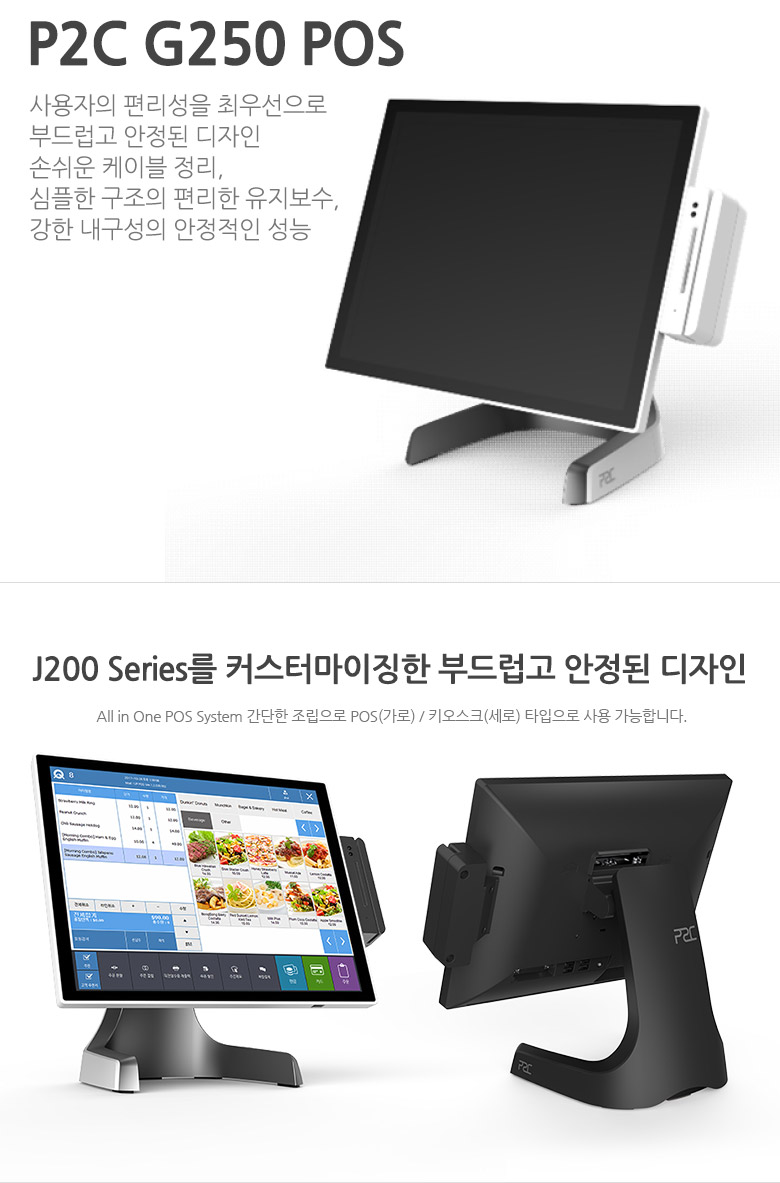

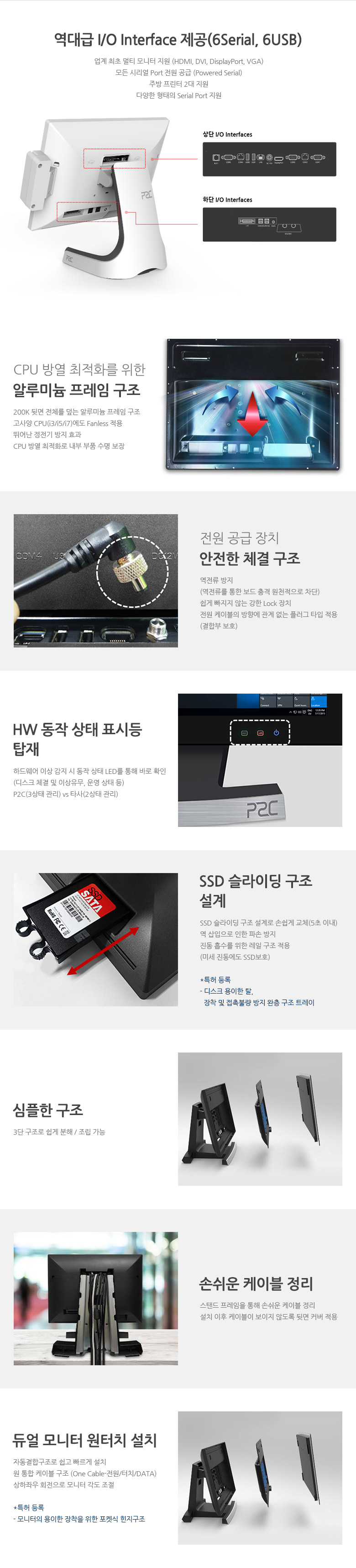

G250



g250 g250 g250 g250

Model G250
System Processor Intel® Celeron™ Quad-Core J4125
Chipset/BIOS Intel® Gemini Lake SoC / AMI
Storage 2.5" SSD 64GB (128GB Optional)
Memory 4GB, DDR4 2400MHz x 1 Slot
(Max 16GB, Optional)
Graphics Intel® UHD Graphics 600
Expansion Slot 1 x m.2NVm2,
1 x m.2 WiFi & Bluetooth(Optional)
Multi Monitor 3(# of Displays Supported)
- UP to 3 Monitors (Optional)
OS Windows 10 IoT Entry (64bit)
LCD Display Type 15” LCD with WLED backlight
Resolution 1024 x 768
Touch True-Flat Capacitive 10 Point Multi-Touch
I/O Interface Serial 6(DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1)
COM1, 3, 5(DB9): +5V on Pin #9, Selectable by BIOS
COM2, 4 (RJ50, RJ45): Support +5V and 12V for Special Devices and can be used for Kitchen Printer
COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
USB 4 x USB 3.0 (2 x Rear Top, 2 x Rear Bottom),
3 x USB 2.0 (Rear Bottom x 2, RJ11 x 1)
LPT(Parallel) 1(LPT / DB25 on Rear Bottom)
Audio 1 x Audio-out / 3.5mm(Changeable for MIC)
Display Port 1 x DisplayPort(Included 1 x USB 2.0 / Power Delivery +12V)
*Can be used for HDMI and DVI, VGA Monitor by Converter Cable
LAN 1 x RJ45(Base-T 10/100/1000 Ethernet)
Peripheral Options 2nd Display Type 9.7" Display
Resolution 1024 x 768
Functions Multi Display Function by DP MST Hub/Supported Standard HDMI, DVI, DP by each Cable Customer
Customer Display VFD Type (Alphabet & Numeric, 20 Characters x 2 Lines)
Card Reader (MSR/SCR) Smart Card Reader: ISO/IEC7816 EMV Level 1
Magnetic Stripe Reader: ISO 7811 ID-1 All Tracks
*Interface: USB(HID) and RS232C(COM6)
Dallas Reader Dallas Reader(i-button): 6 Characters/Prefix and Suffix
*Interface: USB(HID) and RS232C(COM6)
Physical Dimension Dimernsion
(W x D x H mm)
362mm x 237mm x 336mm
Weight 5.0Kg
Environment Power Supply DC 12V/5A (AC 100V~240V, 60W)
Temperature Operating: 0~50℃ at 10% to 90% Humidity
Certifications CE, CB, FCC, KC
※ 제품 외관 등은 실제 제품과 차이가 있을 수 있으며, 사양은 업그레이드를 위해 사전 통보 없이 변경될 수 있습니다.
하나시스 무인포스

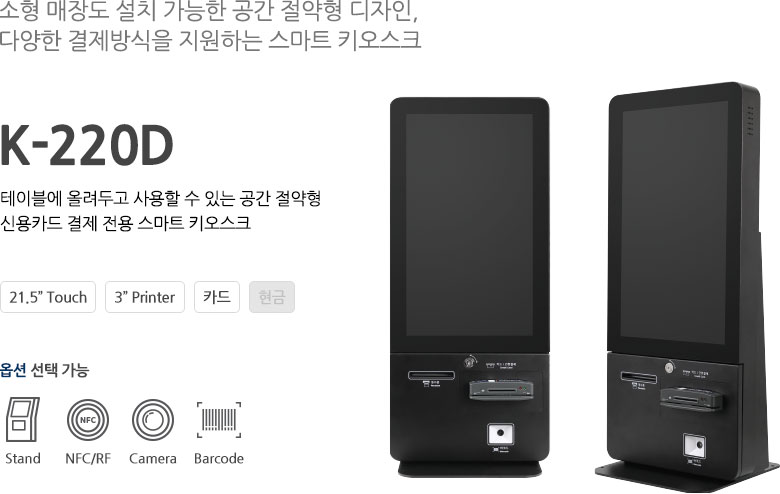

K-220D


Display 21.5” LED Touch Screen (1080 x 1920)
Reader IC/MSR
Printer 3Inch Thermal
Coin/Bill -
Memory/SSD DDR3 4GB / mSATA 64GB
CPU 인텔 Celeron J1900
OS / DB Windows 10 loT / POSReady 7
Option Camera / NFC Reader / Barcode Reader
Color White / Black

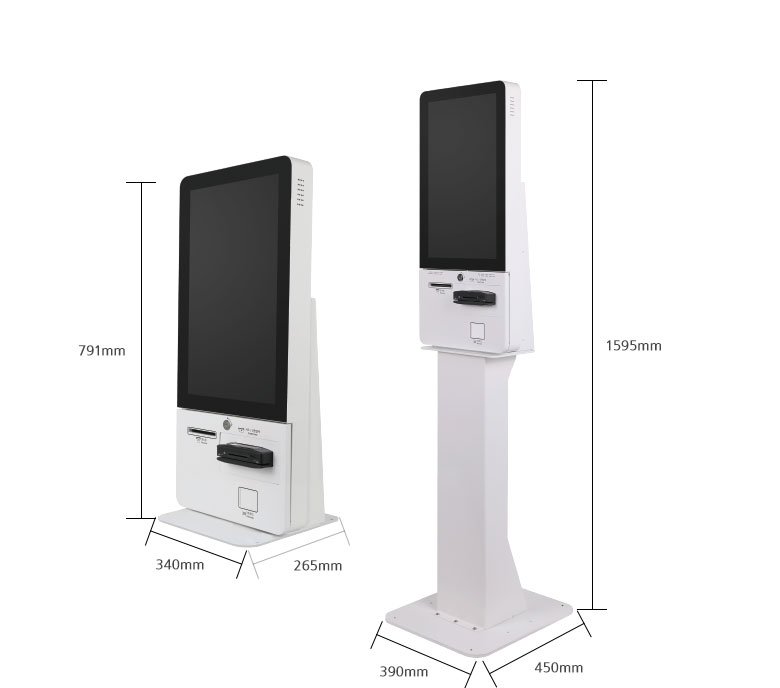

Dimension (mm) 데스크 - 340(M) x 265(D) x 791(H)
스탠드 - 390(M) x 450(D) x 1595(H)
Weight 데스크 - 21 kg
스탠드 - 44 kg

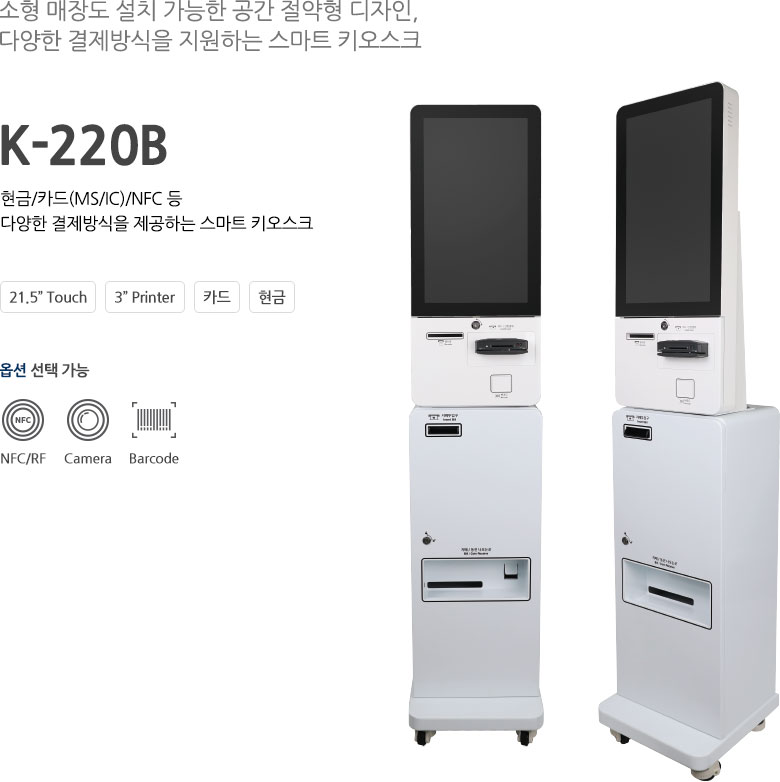

K-220B

Display 21.5” LED Touch Screen (1080 x 1920)
Reader IC/MSR
Printer 3Inch Thermal
Coin/Bill 지폐인식기/지폐배출기/동전배출기
Memory/SSD DDR3 4GB / mSATA 64GB
CPU 인텔 Celeron J1900
OS / DB Windows 10 loT / POSReady 7
Option Camera / NFC Reader / Barcode Reader
Color White / Black

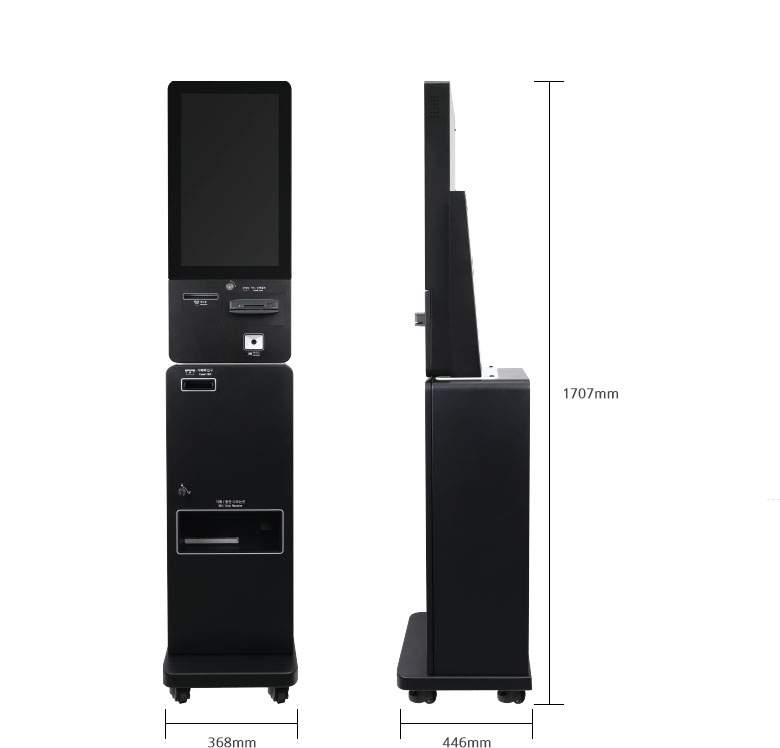

Dimension (mm) 368(M) x 446(D) x 1707(H)
Weight 54.6 kg

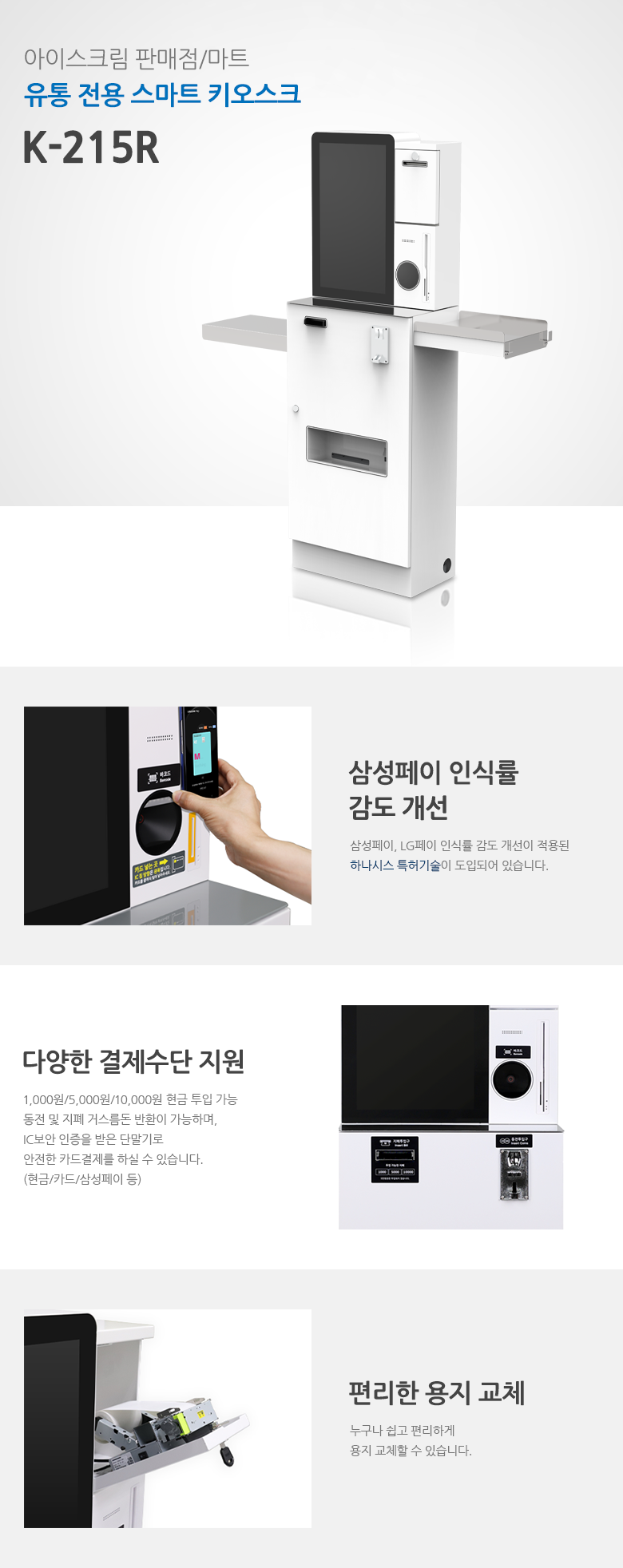

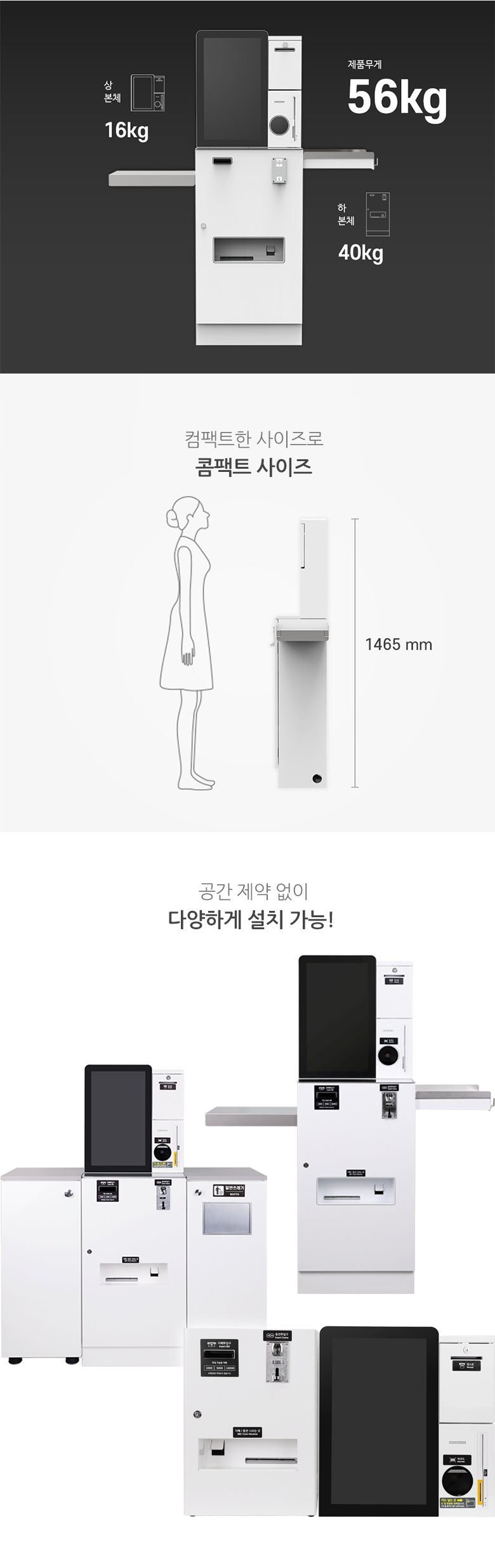

K-215R

구 분 항 목 상세사양
제품 사양 화면과 터치스크린 21.5" LED Touch Screen (1080 x 1920)
중앙처리장치(CPU) 인텔 J1900 / 인텔 4세대, 6세대 i5 ~ 펜티엄
메모리 4GB DDR3, SoDIMM (최대 8GB)
저장장치 mSATA 64GB↑

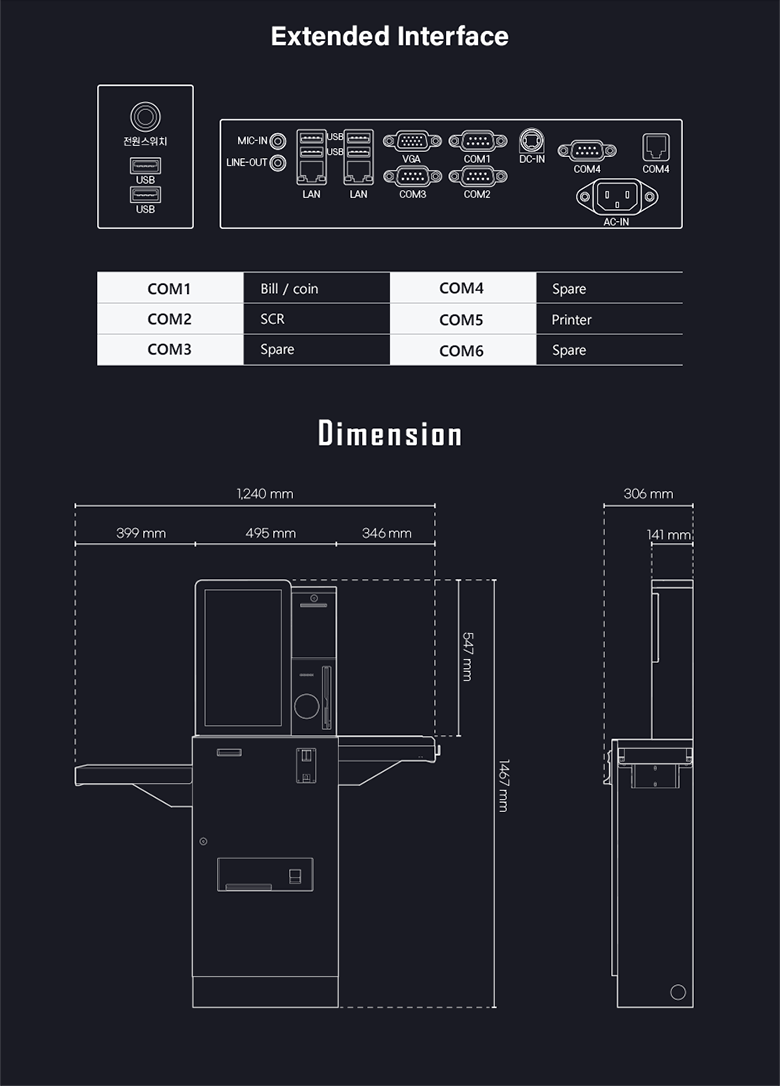

확장 인터페이스 포트 LAN, USB, Serial(DB9), Serial(RJ-45 주방프린터 전용)
운영체계 (OS) POSReady7 / Windows 10 IoT
영수증프린터 3" Thermal (80mm x Ø80)
카드단말기 IC/MSR (여신 금융업법 인증 단말기, 옵션사양)
현금 모듈 동전인식기, 지폐인식기, 지폐배출기, 동전배출기
제품 크기(mm) 495(W) x 279(D) x 1468(H)
제품 무게 53kg(선반포함 61kg)
옵션 사양 바코드스캐너 1D스캐너 / 2D스캐너
무선 시리얼 RF-COM (주방프린터 전용)
카메라 USB 카메라
선반유닛 적재용 선반, 일반용 선반, 쓰레기통

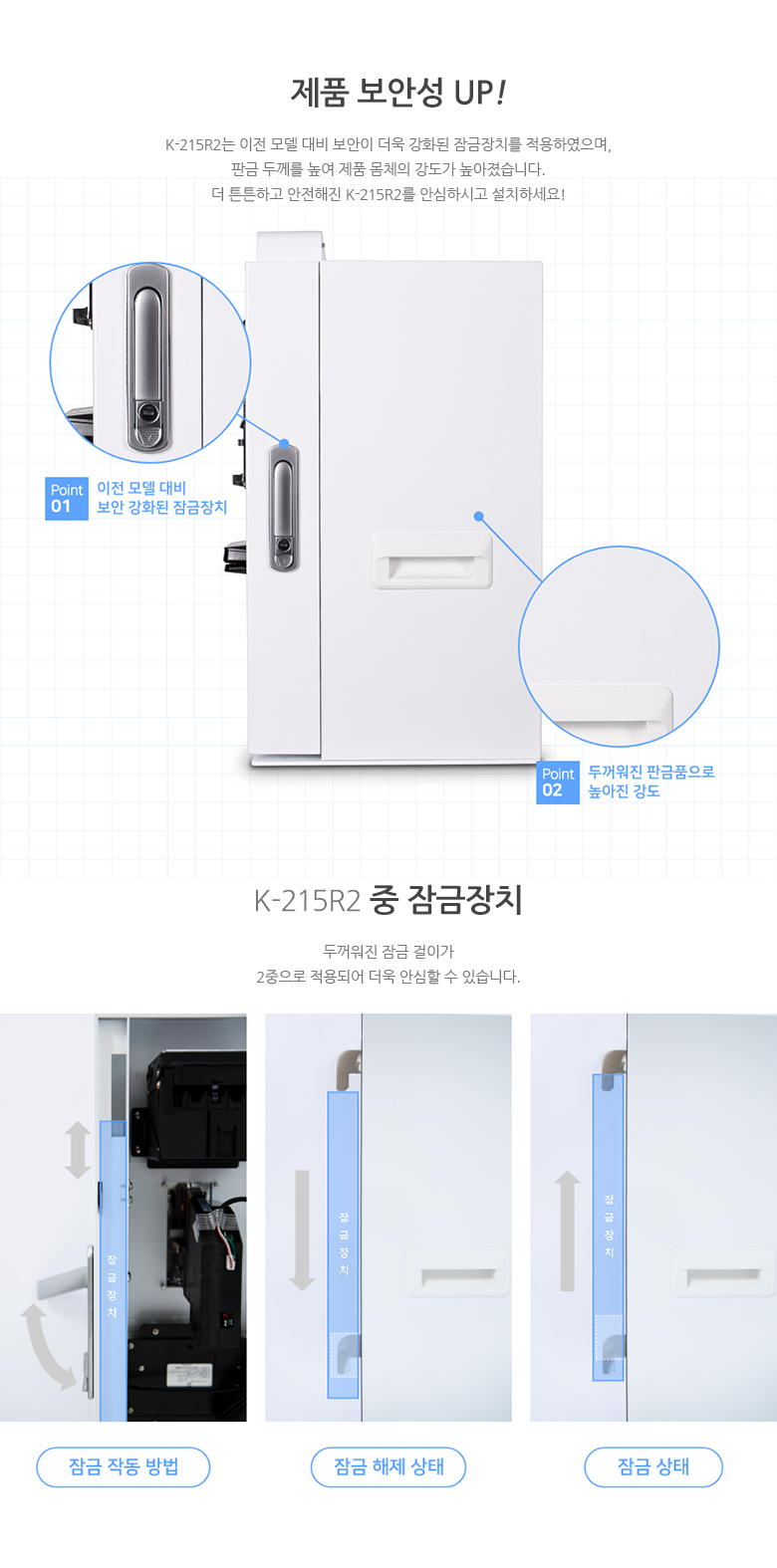

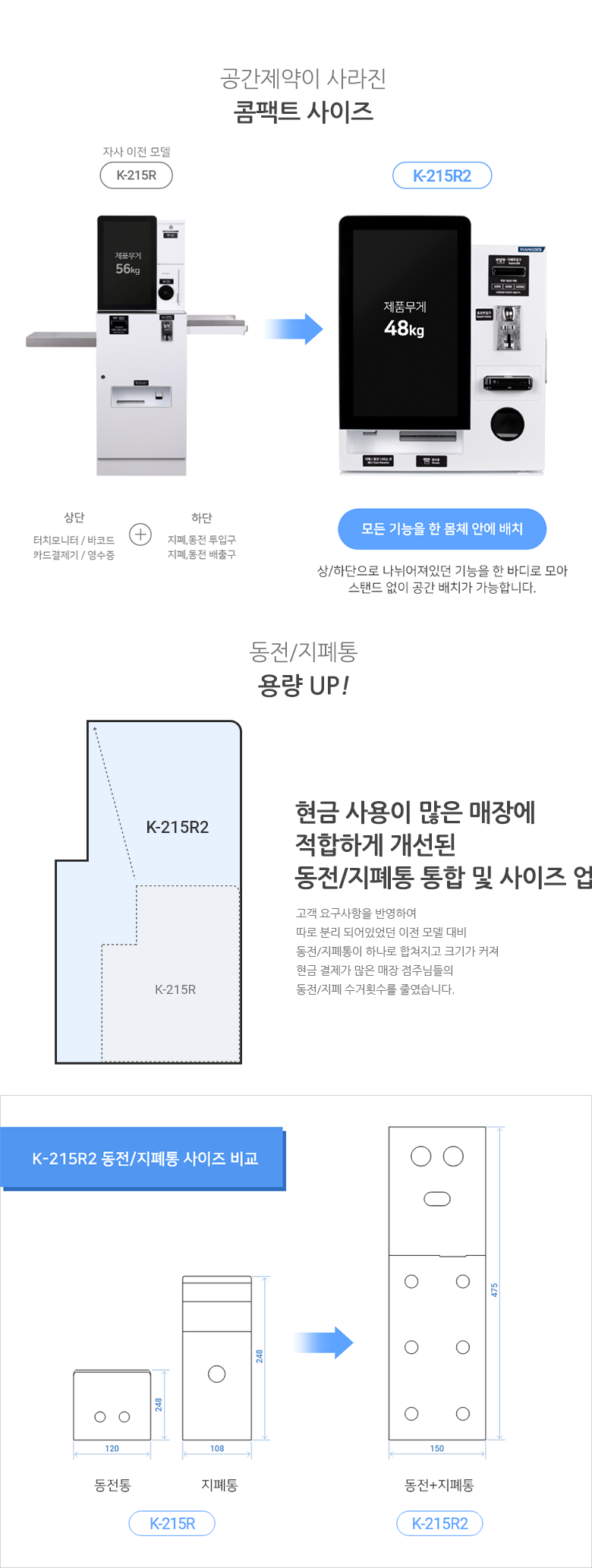

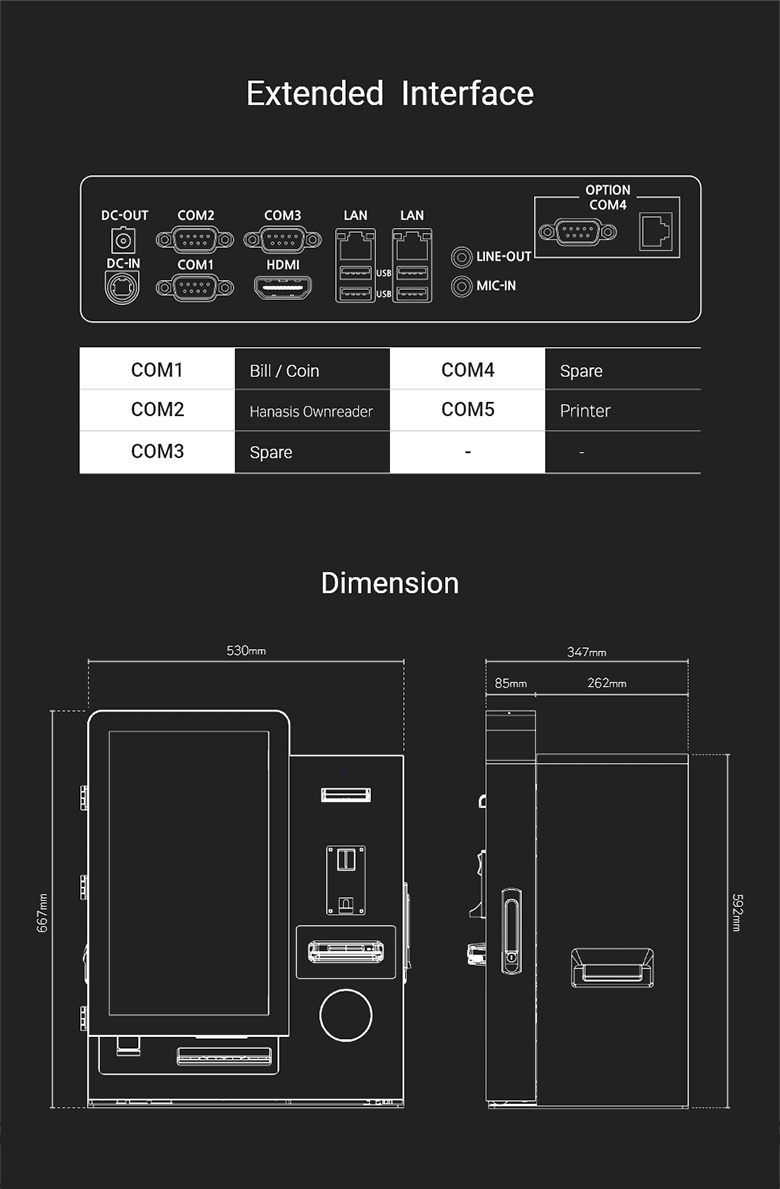

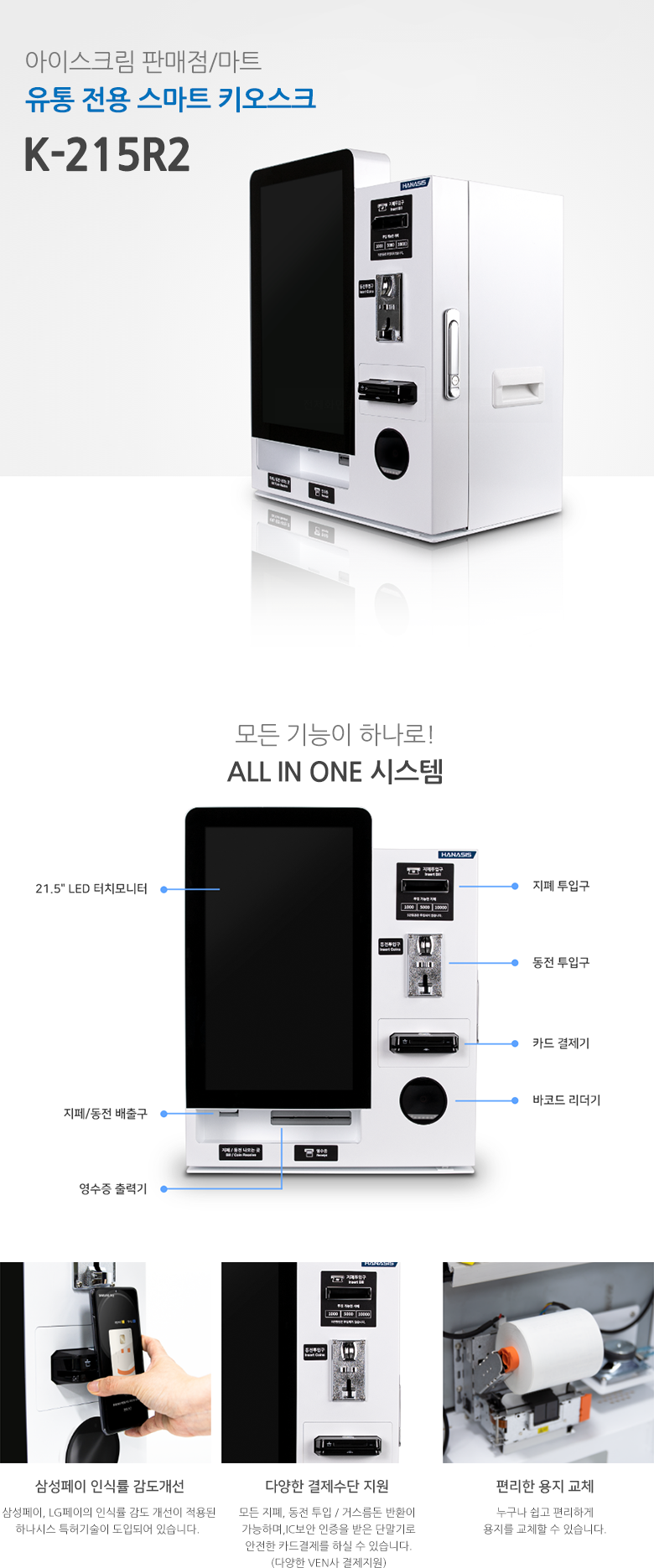

K-215R2

구 분 항 목 상세사양
제품 사양 화면과 터치스크린 21.5" LED Touch Screen (1080 x 1920)
중앙처리장치(CPU) 인텔 J1900 / 인텔 4세대, 6세대 i5 ~ 펜티엄
메모리 4GB DDR3, SoDIMM (최대 8GB)
저장장치 mSATA 64GB↑
확장 인터페이스 포트 LAN, USB, Serial(DB9), Serial(RJ-45 주방프린터 전용)
운영체계 (OS) POSReady7 / Windows 10 IoT
영수증프린터 3" Thermal (80mm x Ø80)
카드단말기 IC/MSR (여신 금융업법 인증 단말기, 옵션사양)
현금 모듈 동전인식기, 지폐인식기, 지폐배출기, 동전배출기
제품 크기(mm) 530(W) x 347(D) x 667(H)
제품 무게 48kg

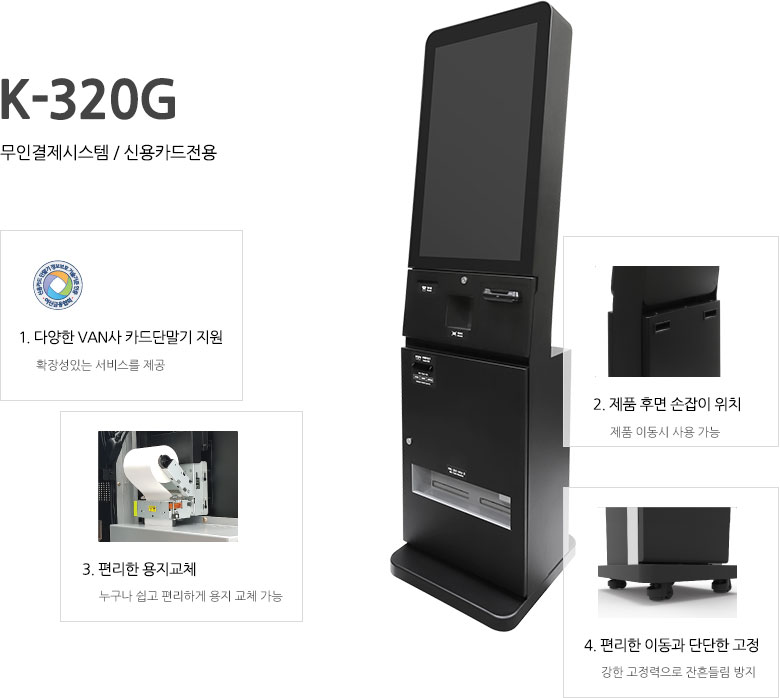

K-320G
